WARN RT15 WINCH
close	Quantity in Basket: None Code: 78000 Price: $241.95
	$10.00 INSTANT REBATE FROM ATV OUTFITTERS (PLEASE CHECK BOX)
Quantity:

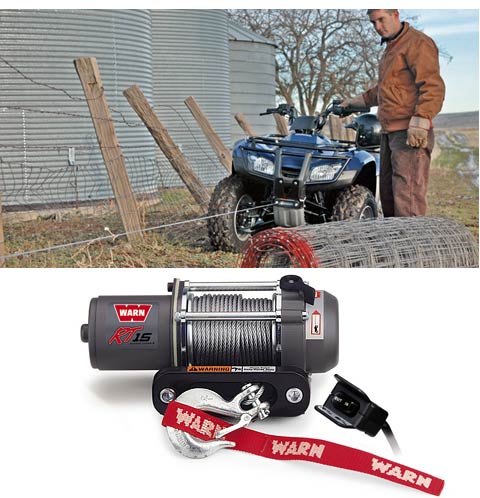

PLEASE NOTE: THIS WINCH DOES NOT QUALIFY FOR THE WARN $50.00 REBATE, BUT WE ARE OFFERING OUR $10.00 REBATE ON THEM SHIPPING INCLUDED IN THE LOWER 48 STATES! RT15 Rugged Terrain ATV Winch for Utility ATV's Under 300cc and all Sport ATV's. The RT15 is the perfect all-around winch for sport quads and small ATVs. Its 1,500 lb. capacity and 50' of wire rope turns compact ATVs into workhorses. Features include a 3-stage planetary geartrain; a patented disc brake for great control; a sealed motor to keep the elements out; and a handlebar-mounted mini-rocker switch for power in/power out. An efficient electrical system for less battery drain and a hawse fairlead round out the RT15's features.
RT 15 SPECS/PART NUMBERS Part Number: 78000 Capacity: 1500 lbs. (680 kgs) No-load Linespeed: 15 ft./min. (4.6m/min) Full-load Linespeed: 5 ft./min. (1.5 m/min) Series: Rugged Terrain Sealing: Motor Geartrain: Metal gears in plastic housing Rope: 50' Aircraft-grade wire, 5/32" diameter (15m, 4mm) Control: Sealed handlebar-mounted mini-rocker control Motor*: 12V DC, 0.4hp permanent magnet, Sealed Gear Ratio: 103:1 Clutch Control: Flip Tab Brake: patented disc brake Drum Diameter/Length: 1.5"/3.0" Fairlead: Hawse Recommended Battery*: 12 Amp/hour minimum Battery Leads: 10 gauge Duty Cycle: Intermittent Warranty: Limited Lifetime (valid in USA and Canada only) Winch Weight: 11.5 lbs (5.2 kgs.) *Designed for use with 12V DC battery systems only. No other voltage systems recommended.:
PERFORMANCE DATA PULL BY LAYER Line Pull Lbs.(Kgs.) Line Speed FT./min(M/min.) Motor Current Pull by layer layer/Lbs(Kgs.) 0 15 (4.6) 6 1/1500 (680) 500 (227) 11 (3.3) 27 2/1320 (599) 1000 (455) 7 (2.1) 44 3/1162 (527) 1500 (680) 5 (2.1) 65 4/1020 (463)
Winch Dimensions: 10.3" L x 4.0" D x 4.6" H (26cm L x 10cm D x 12cm H)
Mounting Bolt Pattern: 3.0" x 4.87" (76 x 124mm)
